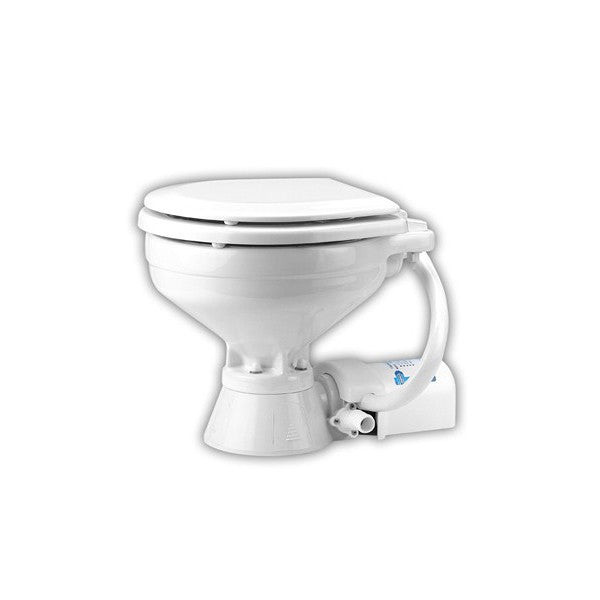

Jabsco Standard Electric Marine Toilet

$928.89 USD · Free shipping

Jabsco Electric Marine Toilet, Household size. Features push button operation. All materials used for this toilet are corrosion resistant for marine use.

White Vitreous China Bowl
Baked enamel seat & cover
Flexible impeller flush pump
Permanent magnet type motor, fully enclosed, with stainless steel shaft
High capacity macerator and bowl scavenger pump
Built-in back flow preventer
12V

Free shipping on every order, no minimum

Manufacturer warranty included

Expert support 7 days a week

Jabsco Electric Marine Toilet, Household size. Features push button operation. All materials used for this toilet are corrosion resistant for marine use.

White Vitreous China Bowl
Baked enamel seat & cover
Flexible impeller flush pump
Permanent magnet type motor, fully enclosed, with stainless steel shaft
High capacity macerator and bowl scavenger pump
Built-in back flow preventer
12V

Power	Select a location for the switch and instruction plate, making sure wire leads from both the toilet and the power source can be routed to the switch. Ensure the panel where installing switch is no more than 1" thick. Drill a 5/8" mounting hole and install switch and instruction plate. Use stranded copper wire of the correct size to connect one side of the switch to the positive power source. An appropriate size fuse or equivalent circuit breaker must be installed in the positive power lead within seven inches of the power source. Connect the other side of the switch to the orange (positive) motor lead. Connect the black (negative) motor lead to the negative side of the battery or grounded buss bar.
Installation	The Jabsco electric toilet may be installed above or below the waterline. Flush pump is self-priming with a vertical lift up to 4 feet; discharge macerator pump can operate against a vertical head up to 4 feet. Inlet and outlet seacocks should be easily accessible and be positive shut off valves. If seacocks cannot be conveniently operated from toilet location, install suitable shut off valves for inlet and discharge connections. Note: Base assembly may be moved 90 degrees to accommodate connections and provide accessibility for servicing. Note: Surface where toilet is mounted should be flat to prevent distortion of toilet base.
Vendor	Jabsco
SKU	ITT-37010-4092
Availability	In Stock

Compatibility varies by product and existing setup. Contact our specialists before purchasing and we'll confirm compatibility with your current equipment.

Our specialists are available Monday–Saturday 9am–6pm EST for post-purchase support. For warranty claims we'll liaise directly with the manufacturer on your behalf.
