Lewmar Marine

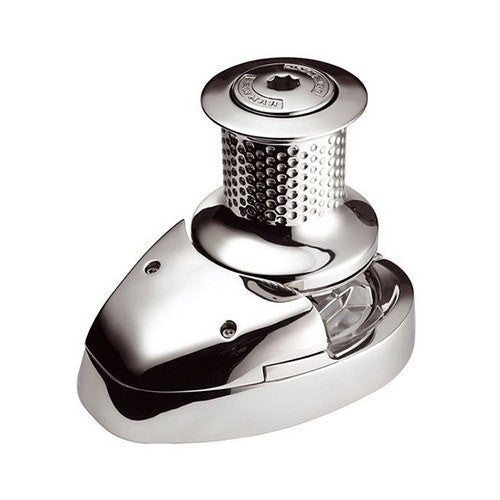

Lewmar V2 Vertical Windlass w/Capstan

$4,578.99 USD · Free shipping

The Lewmar V2 Vertical windlass is constructed of stainless steel for long lasting durability and corrosion resistance. The low profile design keeps the windlass out of your way while looking sleek on any boat. The FastFit motor gearbox makes for easy installation even for by one man alone. The FastFit clamping system aligns to the deck unit and motor gearbox for a perfect first time fit. Simply align the deck unit then slide the gear box up the shaft. This will allow you to swing the clamp shut and tighten with the bronze nut.

Free shipping on every order, no minimum

Manufacturer warranty included

Expert support 7 days a week

Features:
FastFit
W.A.R.P drum
Rope-chain gypsy
Manual chain release (Free Fall)
Rope size: 1/2" - 5/8"
Fall safe anchor lock
Cone clutch
Robust worm gearbox
Specifications:
Motor Power: 700Watts
Max Pull: 1433 lbs
Working Load: 358 lbs
Max Line Speed: 69' per minute
Normal Current Draw: 80Amps
Circuit Breaker: 90Amps

Warranty	5-year limited warranty
Compatibility	Chain: 5/16" G4 HT chain; 8 mm DIN 766 Rope: 9/16" (14 mm) 3-strand or 8-plait nylon rode
Vendor	Lewmar Marine
SKU	LEW-6672021108-138
Availability	In Stock

Compatibility varies by product and existing setup. Contact our specialists before purchasing and we'll confirm compatibility with your current equipment.

Our specialists are available Monday–Saturday 9am–6pm EST for post-purchase support. For warranty claims we'll liaise directly with the manufacturer on your behalf.

Boats approx. 30–42 ft

Approx. 1000 lb max pull

Approx. 250 lb working load

Pulling Power: Approx. 1000 lb max pull
