Lewmar V3 Vertical Windlass

Lewmar Marine

Lewmar V3 Vertical Windlass

$5,028.99 USD · Free shipping

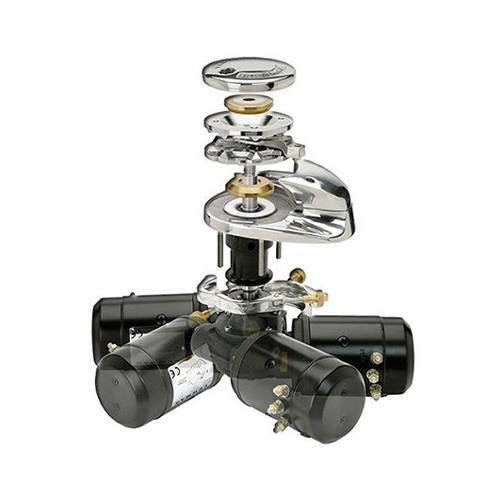

The Lewmar V3 Vertical windlass is constructed of stainless steel for long lasting durability and corrosion resistance. The low profile design keeps the windlass out of your way while looking sleek on any boat. The FastFit motor gearbox makes for easy installation even for by one man alone. The FastFit clamping system aligns to the deck unit and motor gearbox for a perfect first time fit. Simply align the deck unit then slide the gear box up the shaft. This will allow you to swing the clamp shut and tighten with the bronze nut.

Speak with an Expert
Free shipping on every order, no minimum
Manufacturer warranty included
Expert support 7 days a week
Features:
FastFit
W.A.R.P drum
Rope-chain gypsy
Manual chain release (Free Fall)
Rope size: 5/8"
Fall safe anchor lock
Cone clutch
Robust worm gearbox
Specifications:
Motor Power: 1000Watts
Max Pull: 1962 lbs
Working Load: 473 lbs
Max Line Speed: 92' per minute
Normal Current Draw: 85Amps
Circuit Breaker: 110Amps
Warranty5-year limited warranty
CompatibilityChain: 3/8" G4 HT chain; 10 mm DIN 766 Rope: 5/8" (16 mm) 3-strand or 8-plait nylon rode
VendorLewmar Marine
SKULEW-6672211110-139
Availability In Stock
Compatibility varies by product and existing setup. Contact our specialists before purchasing and we'll confirm compatibility with your current equipment.
Our specialists are available Monday–Saturday 9am–6pm EST for post-purchase support. For warranty claims we'll liaise directly with the manufacturer on your behalf.
Approx. 1962 lb max pull
Approx. 473 lb working load
Max Load: 1962 lb
Boats approx. 35–50 ft
