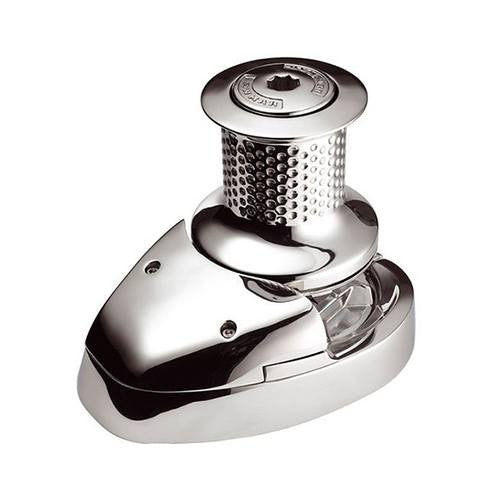

Lewmar V4 Vertical Windlass w/Capstan

$7,447.49 USD · Free shipping

The Lewmar V4 Vertical windlass is constructed of stainless steel for long lasting durability and corrosion resistance. The low profile design keeps the windlass out of your way while looking sleek on any boat. The FastFit motor gearbox makes for easy installation even for by one man alone. The FastFit clamping system aligns to the deck unit and motor gearbox for a perfect first time fit. Simply align the deck unit then slide the gear box up the shaft. This will allow you to swing the clamp shut and tighten with the bronze nut.

Free shipping on every order, no minimum

Manufacturer warranty included

Expert support 7 days a week

Features:
FastFit
W.A.R.P drum
Rope-chain gypsy
Manual chain release (Free Fall)
Rope size: 5/8"
Fall safe anchor lock
Cone clutch
Robust worm gearbox
Specifications:
Motor Power: 1600Watts
Max Pull: 2750 lbs
Working Load: 688 lbs
Max Line Speed: 82' per minute
Normal Current Draw: 125Amps
Circuit Breaker: 150Amps

Warranty	5-year limited warranty
Power	12V DC
Compatibility	Chain: 3/8" G4 HT chain; 10 mm DIN 766 Rope: 5/8" (16 mm) 3-strand or 8-plait nylon rode
Vendor	Lewmar Marine
SKU	LEW-66910088-143
Availability	In Stock

Compatibility varies by product and existing setup. Contact our specialists before purchasing and we'll confirm compatibility with your current equipment.

Our specialists are available Monday–Saturday 9am–6pm EST for post-purchase support. For warranty claims we'll liaise directly with the manufacturer on your behalf.

Max Load: 1870 lb

Amperage Draw: Approx. 120–135 A

316 stainless steel deck unit with vertical gypsy & capstan

Recommended Boat Length: Boats approx. 40–55 ft
